The netGauge AGW™ Sensor Interface Unit is a splash resistant unit that interfaces attached sensors to local WiFi networks. Each Sensor Interface Units can handle up to 8 different inputs (2 Digital, 6 analog). All inputs are calibrated using stored 256 point tables uploaded via USB interface to support a wide range of sensors.
The Sensor Interface Unit provides digital instrumentation for a variety of performance parameters such as AC Voltages, AC current, DC Voltages, DC Current, Air Temperature, Humidity, Contact closures, Wind Speed, Wind Direction, GPS location, and much more all in a compact sealed design.
The built-in Web Server displays all sensor data on any Browser enabled device such as iPads and Android tablets. netGauges AGW™ can connect to local WiFi networks for upload to cloud storage or can be used as a standalone data logger via internal SD Memory card. Housed in a solid ABS water-tight box (measuring only 5.5" long x 1.47" tall x 4.7" wide), the Sensor Interface Unit can fit easily into any mounting location.
Built-in network interfaces allow gauge data to be sent out over local network data links (Wi-Fi or Ethernet) to the Internet. It is now possible to monitor instrumentation data from any Web browser in any location accessible via the Internet.
The local Web Browser display provides real-time monitoring while the cloud-base account service offers historical charting and analytics. If not connected to internet access point, data is logged to internal removable SD storage and can latter be uploaded to cloud storage account.

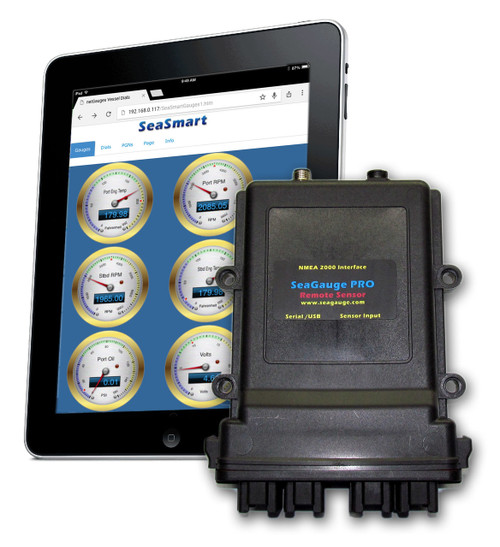

The SeaGauge AGW Unit is a stand alone sensor monitoring solution. Easily connect to a PC to data log and perform engine diagnostics for all analog sensor inputs with optional NMEA 2000/J1939 inputs.
• Included vDash Software allows your SeaGauge AGW Unit to interface with SeaGauge displays, Windows based PC products or NMEA2000/J1939 devices as well as engine performance data logging, system setup and user programmable screen design
• Gauges and Switches can be displayed and controlled from one or more displays using scrolling page format (PC/tablets/smart phones)
• Wireless Mesh network option connects multiple units and sensors/controllers/gateways
• Compatible with all SeaGauge displays, Windows PC’s, NMEA2000/J1939 devices
• Wireless options allow for viewing on any web browser enabled PC, Tablet PC, Smartphones including iPad, iPhone, Blackberry and Android (requires optional SeaSmart Gateway)
• User defined gauge labels (multiple languages) and sensor types
• User defined downloadable sensor calibration tables (virtually unlimited)
• Virtually unlimited sender interface ( Fluid, Pressure, Temp, Volt, Pulse)
• 2 Pulse inputs and 6 digital gauge functions
• User selectable mix and match screen layouts offering dials, bar graphs and text boxes (requires vDash and Windows OS)
• Optional Wireless Mesh Network gateway for expanded remote monitoring and alarms via internet cloud-base services.
